WCASB-800小型冷却器和曝气器,麦芽汁800升每小时

4622-5048.不包括税收

紧凑型冷却器和曝气系统,适用于麦芽汁,每小时具有性能800升磨损。用于热麦汁的精确冷却和通气的阻塞系统。这是在热麦汁酿造过程和啤酒发酵过程开始之前制备麦芽汁的必要设备。两级表格换热器,用于在啤酒发酵过程开始之前使用15℃和1℃的水冷却麦芽汁至7℃。板式换热器和曝气蜡烛连接到不锈钢面板,该面板配备有温度传感器和数字显示器。

€<\/span> 4622<\/bdi><\/span> excluding tax<\/small><\/span>","sku":"WCASB-800-4","variation_description":"

This version includes four thermo sensors and four LED temperature indicators :
\n\u2013 Water temperature at the inlet (usualy 15\u00b0C)
\n\u2013 Water temperature at the outlet of hot water into the vessel
\n\u2013 Ice water temperature at the outlet
\n\u2013 Temperature of the wort at the outlet<\/p>\n","variation_id":26237,"variation_is_active":true,"variation_is_visible":true,"weight":"125","weight_html":"125 kg"},{"attributes":{"attribute_pa_sens":"6s"},"availability_html":"","backorders_allowed":false,"dimensions":{"length":"400","width":"280","height":"1200"},"dimensions_html":"400 × 280 × 1200 mm","display_price":5048,"display_regular_price":5048,"image":{"title":"wort-cooler-aerator-001","caption":"","url":"https:\/\/eshop.czechminibreweries.com\/wp-content\/uploads\/2015\/03\/wort-cooler-aerator-001.jpg","alt":"","src":"https:\/\/eshop.czechminibreweries.com\/wp-content\/uploads\/2015\/03\/wort-cooler-aerator-001-456x456.jpg","srcset":"https:\/\/eshop.czechminibreweries.com\/wp-content\/uploads\/2015\/03\/wort-cooler-aerator-001-456x456.jpg 456w, https:\/\/eshop.czechminibreweries.com\/wp-content\/uploads\/2015\/03\/wort-cooler-aerator-001-150x150.jpg 150w, https:\/\/eshop.czechminibreweries.com\/wp-content\/uploads\/2015\/03\/wort-cooler-aerator-001-100x100.jpg 100w, https:\/\/eshop.czechminibreweries.com\/wp-content\/uploads\/2015\/03\/wort-cooler-aerator-001-300x300.jpg 300w, https:\/\/eshop.czechminibreweries.com\/wp-content\/uploads\/2015\/03\/wort-cooler-aerator-001-480x480.jpg 480w, https:\/\/eshop.czechminibreweries.com\/wp-content\/uploads\/2015\/03\/wort-cooler-aerator-001-240x240.jpg 240w, https:\/\/eshop.czechminibreweries.com\/wp-content\/uploads\/2015\/03\/wort-cooler-aerator-001-600x600.jpg 600w, https:\/\/eshop.czechminibreweries.com\/wp-content\/uploads\/2015\/03\/wort-cooler-aerator-001-400x400.jpg 400w, https:\/\/eshop.czechminibreweries.com\/wp-content\/uploads\/2015\/03\/wort-cooler-aerator-001-520x520.jpg 520w, https:\/\/eshop.czechminibreweries.com\/wp-content\/uploads\/2015\/03\/wort-cooler-aerator-001-260x260.jpg 260w, https:\/\/eshop.czechminibreweries.com\/wp-content\/uploads\/2015\/03\/wort-cooler-aerator-001-334x334.jpg 334w, https:\/\/eshop.czechminibreweries.com\/wp-content\/uploads\/2015\/03\/wort-cooler-aerator-001-90x90.jpg 90w, https:\/\/eshop.czechminibreweries.com\/wp-content\/uploads\/2015\/03\/wort-cooler-aerator-001.jpg 700w","sizes":"(max-width: 456px) 100vw, 456px","full_src":"https:\/\/eshop.czechminibreweries.com\/wp-content\/uploads\/2015\/03\/wort-cooler-aerator-001.jpg","full_src_w":700,"full_src_h":700,"gallery_thumbnail_src":"https:\/\/eshop.czechminibreweries.com\/wp-content\/uploads\/2015\/03\/wort-cooler-aerator-001-100x100.jpg","gallery_thumbnail_src_w":100,"gallery_thumbnail_src_h":100,"thumb_src":"https:\/\/eshop.czechminibreweries.com\/wp-content\/uploads\/2015\/03\/wort-cooler-aerator-001-150x150.jpg","thumb_src_w":150,"thumb_src_h":150,"src_w":456,"src_h":456},"image_id":3057,"is_downloadable":false,"is_in_stock":true,"is_purchasable":true,"is_sold_individually":"no","is_virtual":false,"max_qty":"","min_qty":1,"price_html":"€<\/span> 5048<\/bdi><\/span> excluding tax<\/small><\/span>","sku":"WCASB-800-6","variation_description":"

This version includes six thermo sensors and six LED temperature indicators :
\n\u2013 Water temperature at the inlet (usualy 15\u00b0C)
\n\u2013 Water temperature at the outlet of hot water into the vessel
\n\u2013 Ice water temperature at the inlet (usualy 1\u00b0C)
\n\u2013 Ice water temperature at the outlet
\n\u2013 Temperature of the wort at the intlet (usualy +98\u00b0C)
\n\u2013 Temperature of the wort at the outlet<\/p>\n","variation_id":26238,"variation_is_active":true,"variation_is_visible":true,"weight":"125","weight_html":"125 kg"}]">

描述

紧凑的冷却器和麦汁曝气系统,性能800升每小时麦汁

用于热麦汁的精确冷却和通气的阻塞系统。这是在热麦汁酿造过程和啤酒发酵过程开始之前制备麦芽汁的必要设备。

两级表格换热器,用于在啤酒发酵过程开始之前使用15℃和1℃的水冷却麦芽汁至7℃。板式换热器和曝气蜡烛连接到不锈钢面板,该面板配备有温度传感器和数字显示器。

温度传感器允许精确调整介质流动。控制元件用于切换
麦汁冷却系统具有手动或自动操作功能。

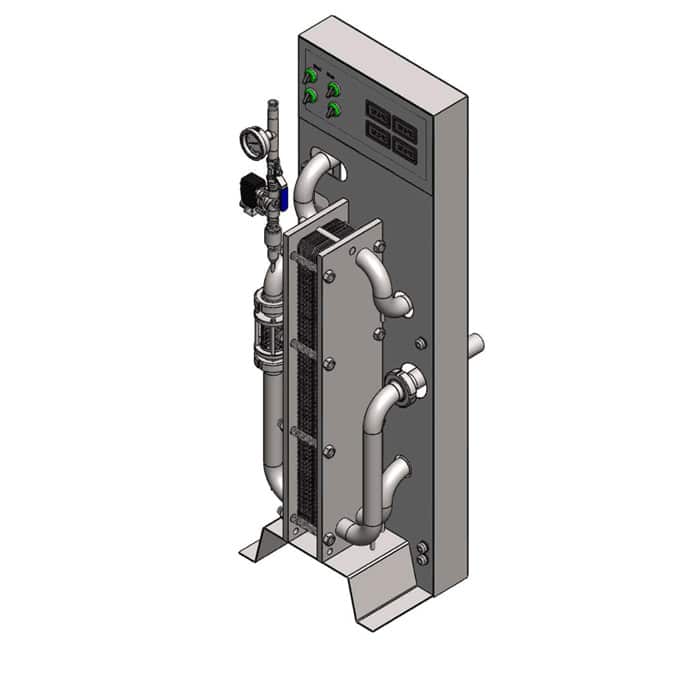

麦芽汁-冷却器通风装置- 002 - 800 x800

温度测量:

4传感器版本:

...包括四个热传感器和四个温度显示指示灯

  • 进水温度(通常为15°C)
  • 进入容器的热水出口的水温
  • 出口处的冰水温度
  • 麦芽汁出口的温度

6-sensors版本:

包括六个温度传感器和六个温度显示指示器

  • 进水温度(通常为15°C)
  • 进入容器的热水出口的水温
  • 冰水入口温度(通常为1°C)
  • 出口处的冰水温度
  • 麦芽汁入口温度(通常为+98°C)
  • 麦芽汁出口的温度

技术规格:

  • 冷却室数量:40个
  • 第一个冷却水平的腔室数:18
  • 第二冷却水平的腔室数:14
  • 1级啤酒入口温度:90°C
  • 啤酒出口温度:25°C
  • 进水温度:15℃(视网络水温而定)
  • 输出水温:65-70°C
  • 2级麦芽汁入口温度:23°C
  • WORT OUTLET温度:7°C
  • 冰水入口温度:0-2°C
  • 冰水出口温度:3-5℃

安装:

  • 管道DN 32
  • 曝气的蜡烛
  • 压力表0-4 bar
  • 空气纳米过滤
  • 4x温度计Dixell XT11s
  • 6x水槽用于温度计
  • 气动阀空气液体麦芽虫DN 10
  • 气动冷水阀dn25
  • 冷水流量控制阀dn25
  • 用于启动冰水泵的接触器
  • 终端远程控制

维度:

  • A - 1200毫米
  • B - 400 mm
  • C - 280毫米
  • 重量110千克

连接:

  • 麦芽汁输入dn32 din11851
  • Wort Outlet DN 32 DIN 11851
  • 冷水输入G 1“男性
  • 冷水输出g 1“男性
  • 冰水输入g1 "公
  • 冰水输出g 1“男性
  • 压力空气输入G 1/4“男性
  • 电力 - 欧盟标准连接器1x 230V / 50Hz / 16A

额外的信息

重量 125公斤
方面 400 × 280 × 1200 mm
传感器

四个传感器,六个传感器
